Remote Video Inspection Applications
Remote Video Inspection (RVI) involves camera inspection beyond traditional borescopes and pipe cameras. RVI (also called CCTV Inspection) refers to the use of video camera systems to image the internals of structures, equipment, and components that are otherwise inaccessible due to physical configurations, safety concerns, or other limitations. Video inspection cameras allow you to locate and inspect key areas of concern without excessive disassembly of equipment or systems and without the need for dangerous confined space entries.
Robotic Crawler Photos
Tethered crawler systems
Boroscope Photos
4mm, 6mm, 8mm, HD, Sterio Vision
Push Reel Camera Photos
Up to 120m in HD
Industrial Drone Photos
Internal or External UAVs available
Remote Video Inspection Applications
Sewer inspection is the most common camera inspection application in North America due to the volume of aging drainage infrastructure.
However, the equipment and experience requirements for Oil & Gas, Power Generation, Pipeline, and other industrial camera inspections go far beyond the basic tools and methods required for sewer camera work.
Maverick Inspection Ltd. in Edmonton, Alberta is a leader in providing solutions and finding innovative new applications and technology for remote camera inspection in Canadian industry. This includes pipe inspection, pressure vessel inspection and turnaround support.
Remote Video Camera systems are often complemented by other technology such as Ground-penetrating Radar, Infrared Thermography, Utility Locating, Retrieval Systems, and Laser Pipe Profiling. For some applications, measurement software can be used for further analysis of the video inspection results.

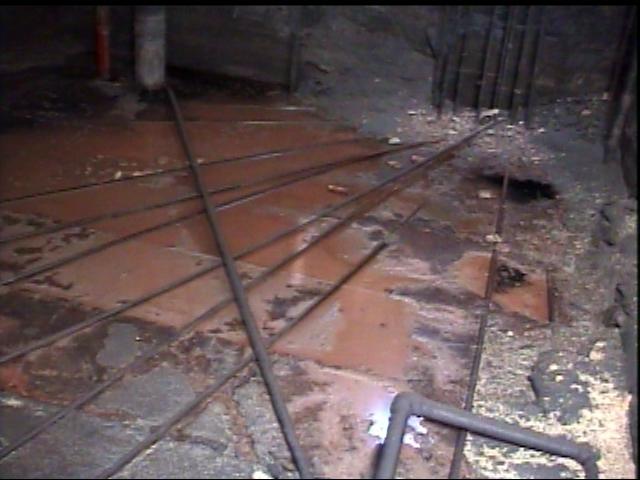

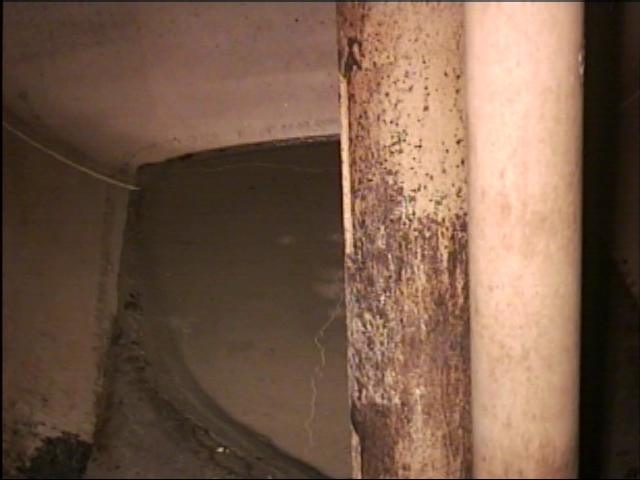

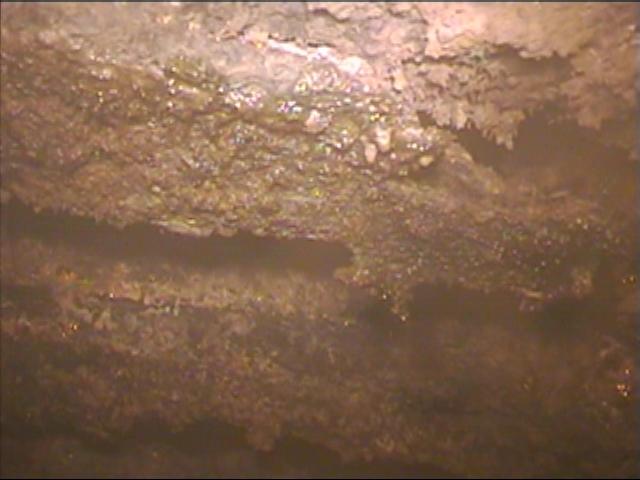

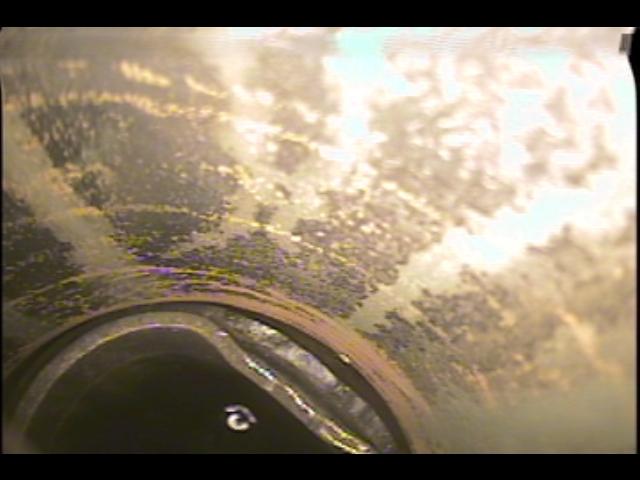

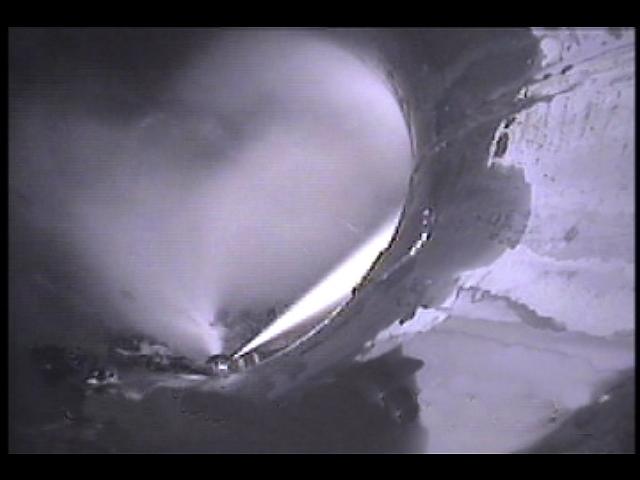

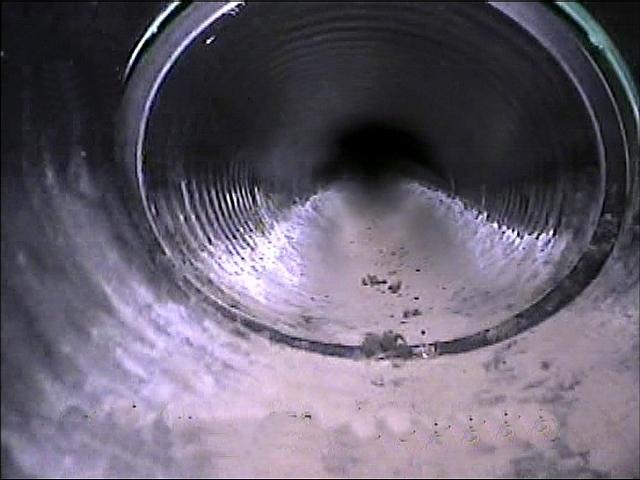

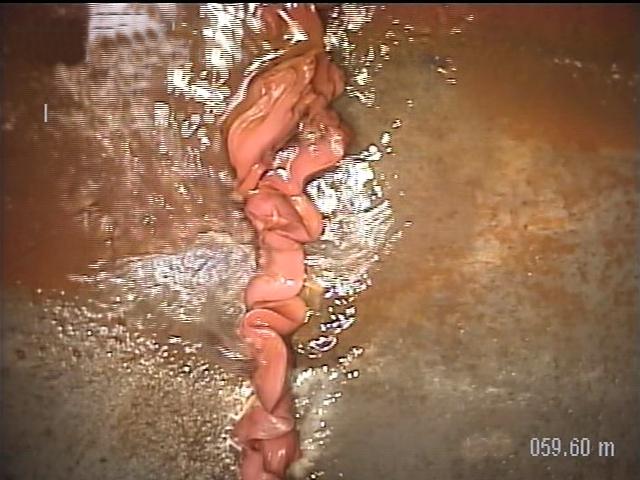

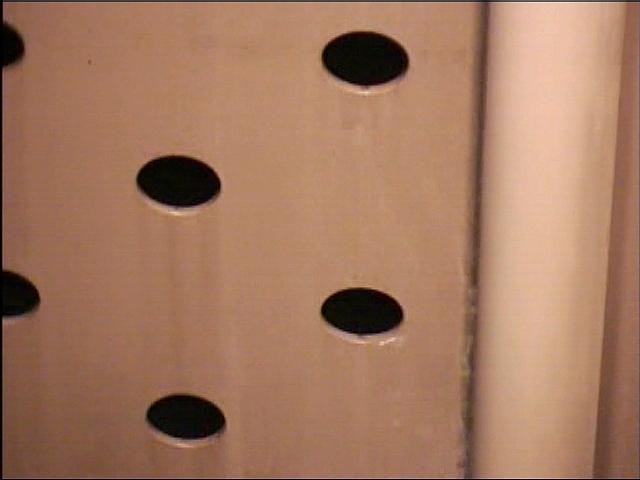

REMOTE VIDEO INSPECTION APPLICATION PHOTO GALLERY
See some samples of the inspections that we have completed in the gallery.
As Canada’s leading video inspection service provider, Maverick maintains an arsenal of different camera inspection systems. No one or two pieces of equipment are sufficient for inspecting the broad range of pressure vessels, pipelines and piping, rotating equipment and heat exchangers. The following video equipment examples below are just some of the video camera options that are essential for hard-to-access scenarios
Call For a Quote:
780-467-1606
VIDEO SCOPE / BORESCOPE/ FIBERSCOPE:
A video scope, fiberscope or borescope is a small diameter high-resolution, flexible means of viewing the inside of tubes, pressure vessels, mechanical components, or other equipment with limited accessibility. They are flexible, they have high-intensity lighting, and they can include features such as four-way articulation. Maverick often uses these video inspection systems with software to measure features.
- Flexible and portable equipment
- High-intensity LED lighting
- Articulating heads with a variety of lenses
- As small as 6 mm in diameter

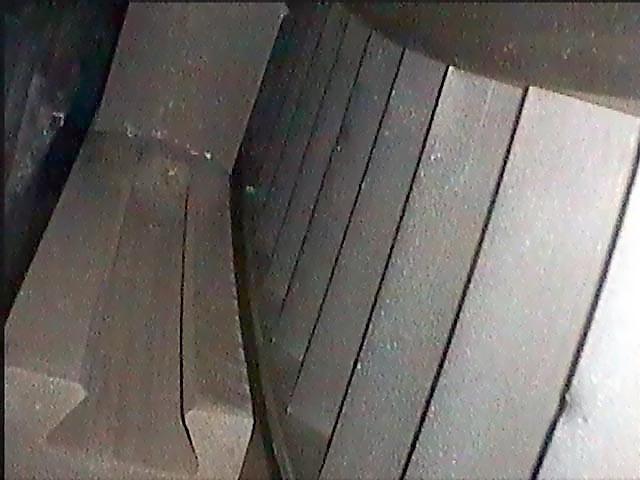

- Ideal for inspecting rotating equipment, engine components, small vessels, equipment with very small inspection ports

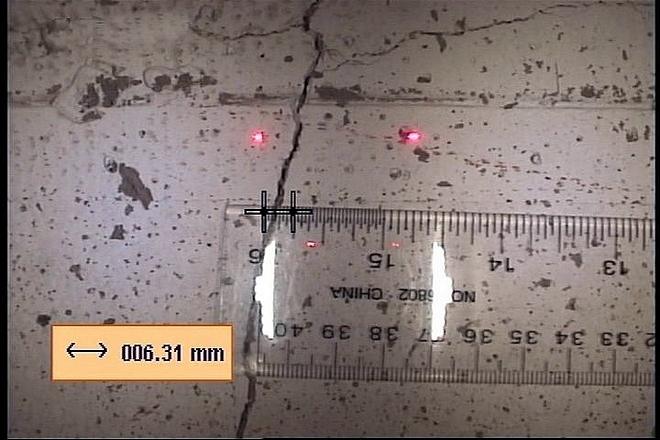

- Used with measurement software for some applications
DVR (DIGITAL VIDEO RECORDER) PUSH CAMERA SYSTEMS:
The DVR push camera inspection systems are often called sewer pipe cameras, pipe cameras or borescopes and are ideal for small diameter piping (as little as 3/4?) for down-holes, pressure vessels and other applications where a rugged, push-style camera head is required. There are a variety of sizes and features to fit different applications. Often they are employed for retrieval scenarios when the path to the foreign objects or debris is inaccessible for a robotic system. These systems are often used for piping and pipeline camera inspections.
- Ideal for small-diameter pipe with multiple bend configurations, pressure vessels, pipelines and other applications where a rugged, push-style camera head is required
- Often employed for retrieval scenarios when the path is inaccessible for a robotic system
- Inter-changeable camera heads for different applications
- Great for underwater applications (some systems can work in depth ranges up to 1000 feet)
- Full remote control of features such as panning and tilting of the camera head, lens focusing, optical zoom, and light
- CSA Class 1/ Division 1 Explosion-proof systems available
Robotic Crawler and Drop Camera Inspections

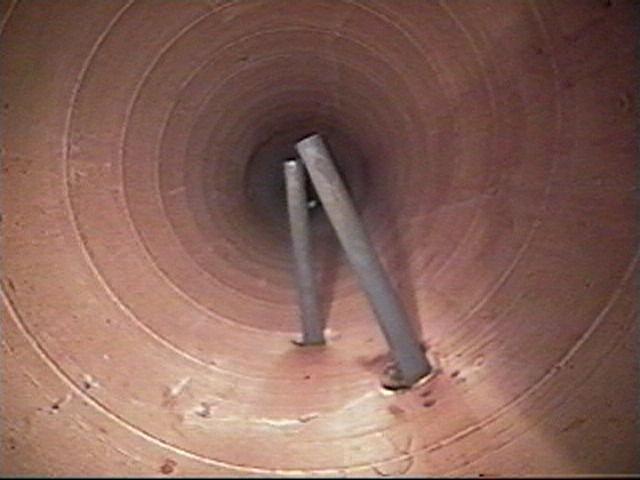

The drop camera inspection systems are often utilized in locations that offer access down long shafts, stacks and vertical risers. There are a variety of sizes and features to fit different applications. Often they are employed during shutdowns and turn arounds to complete internal assessments of refratory, instrumentation, louvers, structural supports and for signs of inservice damage. These systems are often used for flare, stack and manhole inspections.
- Ideal for large-diameter areas with vertical access points.
- Often require access to the top of the asset or through an inspection port.
- Inter-changeable camera heads for different applications.
- Full remote control of features such as panning and tilting of the camera head, lens focusing, optical zoom, and light
- CSA Class 1/ Division 1 Explosion-proof systems available
ROBOTIC VIDEO CRAWLERS & PTZ (PAN/ TILT/ ZOOM) CAMERA SYSTEMS:
Although robotics are often limited to larger access points, they have the advantage of full remote control of features such as panning and tilting of the camera head, lens focusing, optical zoom, light intensity adjustment, telephoto and wide-angle viewing, drive system functions, laser measurement, and many other servo-controlled options. They include stand-alone camera heads and pipe crawler or tractor delivery systems. There are a range of systems available, depending on the specific conditions of inspection environments such as explosive atmospheres, underwater or down-hole depths, or the overall layout of the inspection area. Robotics excel in situations involving complex remote navigation such as piping bends, foreign object retrievals, and large vessel inspections. Pipeline camera inspections typically involve robotic systems.
Maverick employs a large number of separate Robotic Video Inspection systems for use in a wide variety of projects and environments. In addition to intrinsically safe pipe cameras, our systems include CSA-Rated explosion proof camera crawlers. These robotic, self-driven pan/tilt & zoom systems can be deployed through access openings ranging from as small as 3? all the way up to 72? vessels and pipes. The terms people sometimes use to describe even robotic video inspection systems include pipe cameras, sewer cameras, fiberscopes, borescopes and snake cameras.
- Full remote control of features such as panning and tilting of the camera head, lens focusing, optical zoom, and light intensity adjustment

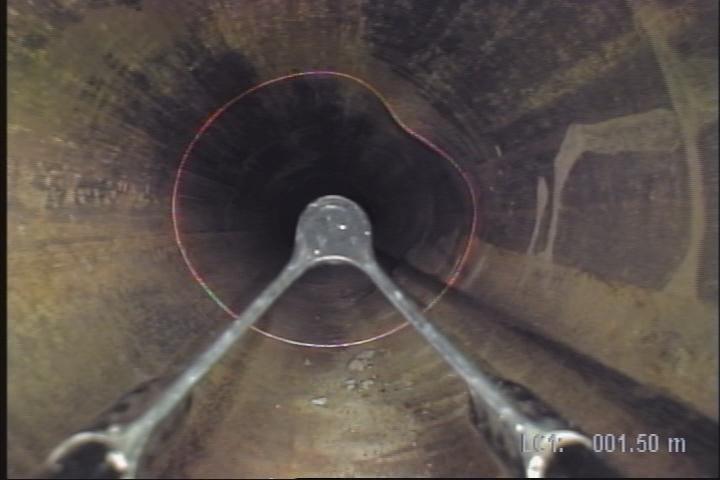

- May include laser pipe profiling and measuring capabilities for: ovality, deformation, scale buildup, wall loss and true cross-sectional measurements performed
- Can access openings ranging from 3” to 72”
- Full drive systems, forward, reverse with steering capabilities
- Long-range capabilities for pipelines & drainage system sewers
- Includes stand-alone PTZ (Pan/Tilt/Zoom) camera heads for manhole and pressure vessel observation surveys
- Excel in situations involving complex navigation: piping bends, foreign object retrieval, flare stacks, pipelines and large vessel inspections
- Can work in explosive and hazardous atmospheres, as well as underwater (CSA Class I Division I and intrinsically safe models are available)
INDUSTRIAL DRONE INSPECTION SYSTEMS:
Although drones have become very popular among hobbyists and other users, Industrial Drone Inspection requires specially designed equipment and specific training and procedures. Maverick has decades of experience providing inspection services for Alberta industry, and we know what it is involved to work diligently and professionally.
For internal drone inspections, Maverick deploys Flyability’s ELIOS drone. It is engineered to provide safe and effective video inspections of plant equipment internals. ELIOS is collision tolerant and made for stacks, chimneys, vessels, piping, and other industrial internal inspections.
Maverick also provides traditional aerial drone inspections for more commonplace applications such as roof scans, building envelopes, and aerial mapping. Combined with Maverick’s CAD, GIS, Geomatics and mapping capabilities, drones are powerful tools and not just cool toys.
